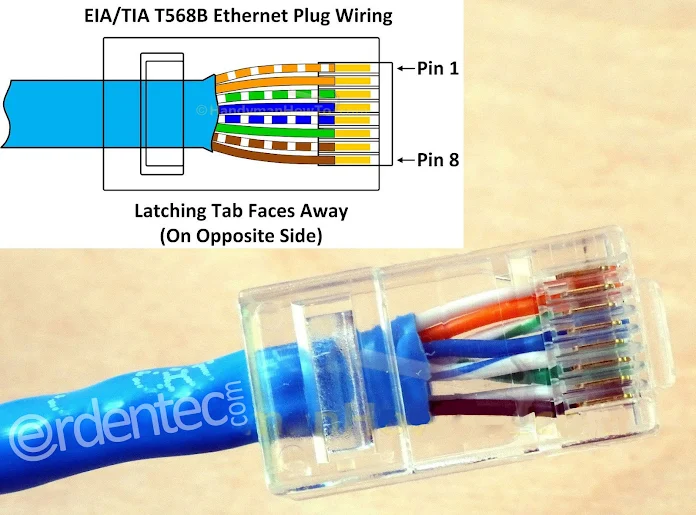

RJ45 Color Coding
There are 8 cables in the cables such as CAT5, CAT6 that we use when connecting our computers or devices to the Internet or a network by cable. The random use of these cables does not work. We can straighten and use these cables according to a standard. There are two standards most used by technology focuses. Straight Connection and Crossover connection form. You must choose between these two Straighten according to the purpose of your network. If you are going to connect your devices to a network, you should choose Straight connection. If you are going to connect two computers directly, you should use the Crossover connection method this time.
Straight Connection Type
This is our most used connection method. If you are going to connect your device to a network, ie the internet, with the Ethernet input. If you need to open more, if you are going to connect your devices to Modem or Switch, you should list the cables with this connection type.

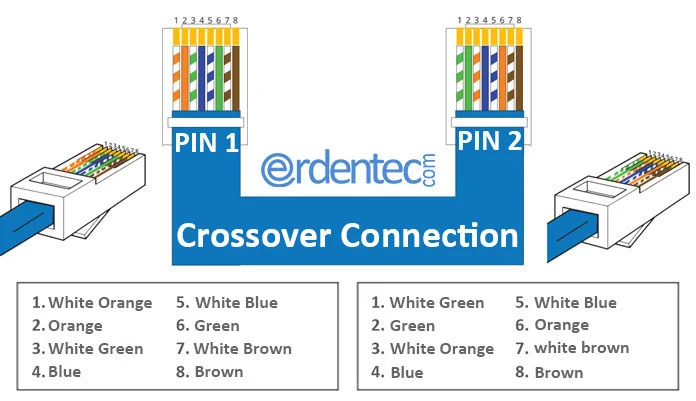

Crossover Connection Type
This type of connection can be used in some cases. In this connection method, if we are going to connect two computers directly without an intermediary and transfer data, we should use this connection method.
How to Connect RJ45 (Cat5-Cat6-Cat7) Cable?
- Once you’ve decided what type of connection you will use, straighten the cables. The straighter it is, the more comfortable you will be.
- Sort the cables according to the connection type you choose and cut off the excess with pliers.
- With the RJ45 header copper pins up, then insert the cable. Make sure that all cables go through their holes.

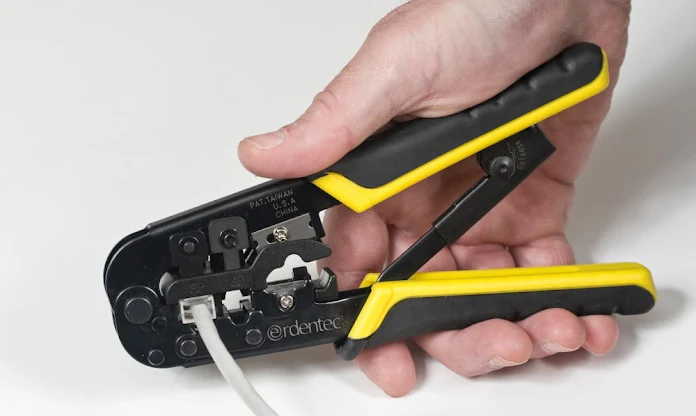

- Finally, insert it into the Crimping pliers and tighten well. So much.
